Hibridni 4CH snimač za video nadzor H.265+

Описание

Centralni deo svakog sistema za snimanje.

Pohranjuje snimljeni materijal na hard disku i omogućava kasniju reprodukciju.

Moguć izbor režima rada.

Isporučuje se bez memorije.

PC Client možete preuzeti klikom na ovaj link: PC Client

Search Tool možete preuzeti klikom na ovaj link: Search Tool

Tip: Hibridni XVR

Napajanje: 12V DC / 2 A

Procesor: MC6630

Broj kanala: 4

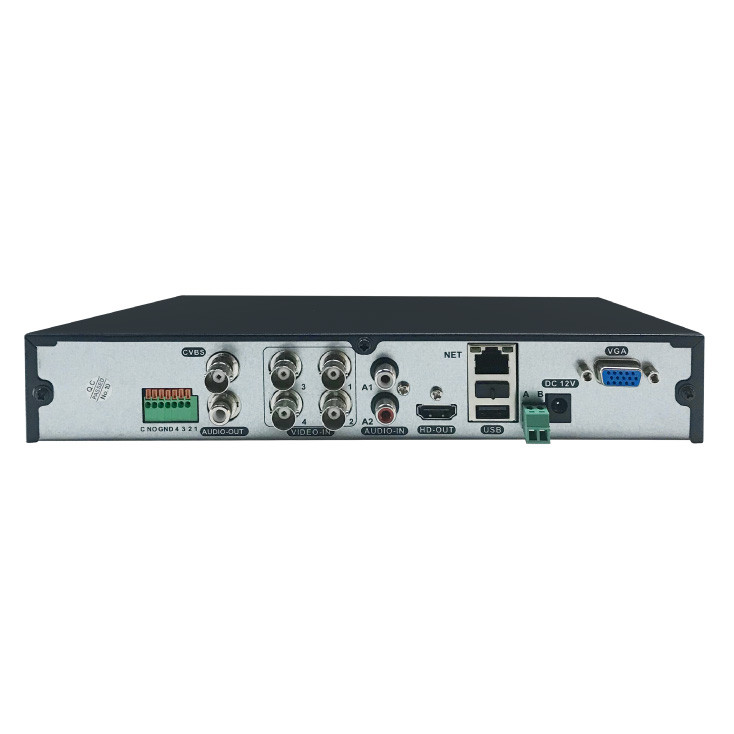

Video ulaz: 4 x BNC

Video izlaz: 1 x VGA, 1 x HDMI, 1 x CVBS

Audio ulaz: 2 x RCA

Audio izlaz: 1 x RCA

USB priključak: 2 x USB 2.0

Alarm ulaz: 4 CH

Alarm izlaz: 1 CH

Mrežni interfejs: 1 x RJ45 10M/100M Ethernet

PTZ kontrola: 1 x RS485

Režimi: Normal mode, Lite mode

Normal: Default, Analog + Network

Default: 4*(AHD/TVI/CVI:8M;AHD/TVI:5M,AHD/TVI/CVI:4MP/3MP/2MP/720P/960H)+2*IPC(Max5MP)

Analog + Network: 2*(AHD/TVI/CVI:8M;AHD/TVI:5M,AHD/TVI/CVI:4MP/3MP/2MP/720P/960H)+7*IPC(MAX 5MP)

Lite: Default, Analog, Analog + Network, Network

Default: 4* (TVI/AHD/CVI: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P;

Analog: 960H+2*network (MAX 5MP)

Analog + Network: 2*Analog (TVI/AHD/CVI: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+7*network(MAX 5MP)

Network: 16*5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth <48M)

Snimanje: Normal mode, Lite mode, Pure IP (H.265)

Normal: Analog, NTSC

Analog: PAL:8MP_LITE(1920×2160 4*8fps),5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280× 1440 4*15fps),3MP(2048×1536 4*9fps),3MP_Lite(1024×1536 4*18fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps),960H(960×576 4*25fps

NTSC: 8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)

Lite: PAL, NTSC

PAL: 5MP_Lite(1296×1944 4*10fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)

NTSC: 5MP_Lite(1296×1944 4*10fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(960×480 4*30fps)

Reprodukcija: Analog, Hibrid, IPC

Analog: 4CH 960H@25fps, 2CH 720P@20fps, 2CH 1080N@18fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps

Pure IP: PAL, NTSC

PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@16×25fps,960P@16×25fps,720P@16×25fps, D1@16×25fps

Reprodukcija: Analog, Hibrid, IPC

Analog: 4CH 960H@25fps, 2CH 720P@20fps, 2CH 1080N@18fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps

Hibrid: 4CH 720P@25fps, 2CH 1080P@25fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps

IPC: 4CH*720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps

Operativni sistem: (OS) Embedded LINUX

OS podrška: Windows 7 / 8 / 10

Podržani pretraživači: Edge, IE8-11, Google Chrome, Firefox, Safari

HDD: 1 x SATA HDD (2.5"/3.5" SATA), nije u sklopu

Najveći podržani HDD: 8 TB maks.

Backup režim: Mreža, USB fleš disk, FTP

Praćenje sa udaljene lokacije: Da

Protokoli: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP

3G / WiFi: Ne

HDD u sklopu: Ne

Miš u sklopu: Da

Radna temperatura: -10°C do +55°C

Masa: 2 kg (bez HDD)

Dimenzije: 260x215x43 mm
